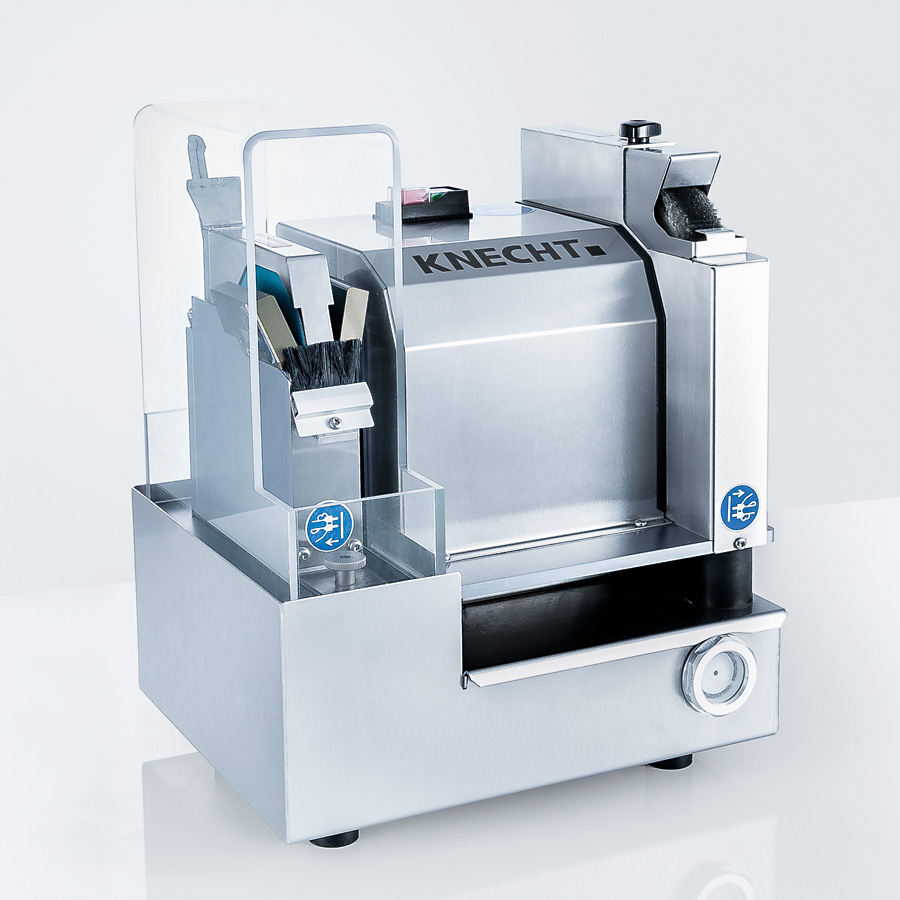

Hand Knife Sharpening Machine EVO 5

The Hand Knife Sharpening machine EVO 5 is a robust and reliable sharpening machine for butcher shops, meat packing plants, grinding services, gastronomy etc. The machine can be used to sharpen a wide variety of cutting tools such as butcher‘s knives, boning knives, chef‘s knives and many more.

Super sharp grindings


Maximum user-friendliness


Variable angle adjustment


Health protection is a high priority for the EVO 5. The integrated coolant device binds the grinding abrasion and prevents it from escaping into the environment. This protects the operator‘s breathing passages.

The advantages at a glance

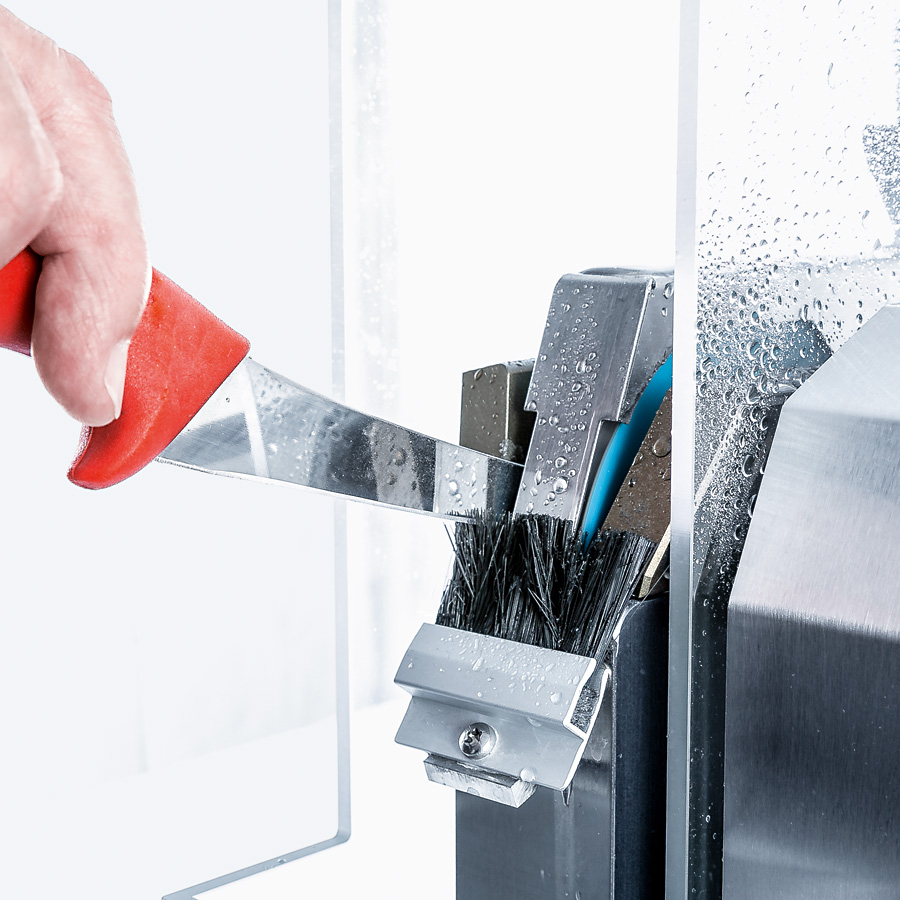

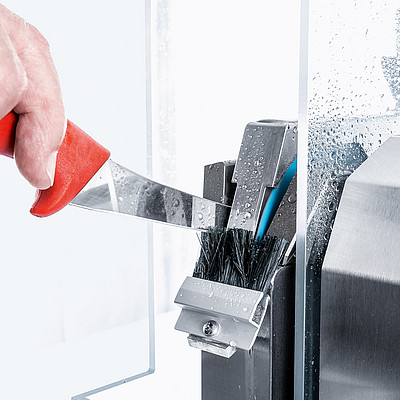

Grinding device

Grinding device

The knife guides ensure that the hand knives are always ground with the correct cutting edge angle. Integrated magnets support the guiding of the knife and make the sharpening process highly simple.

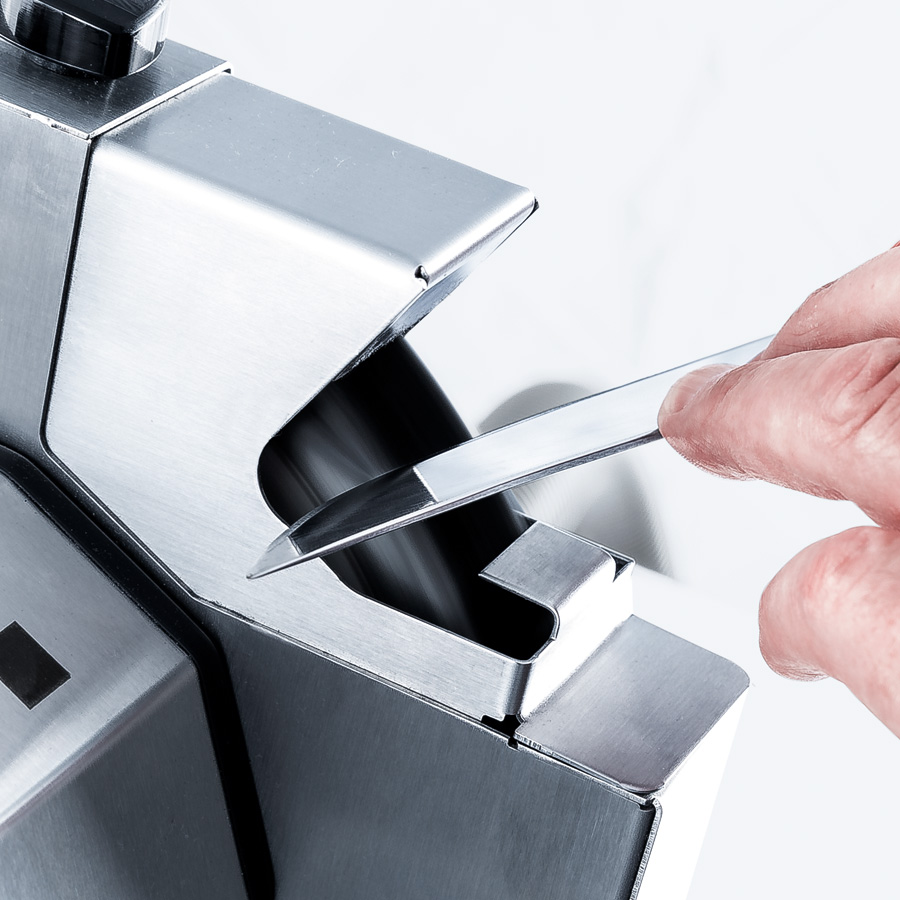

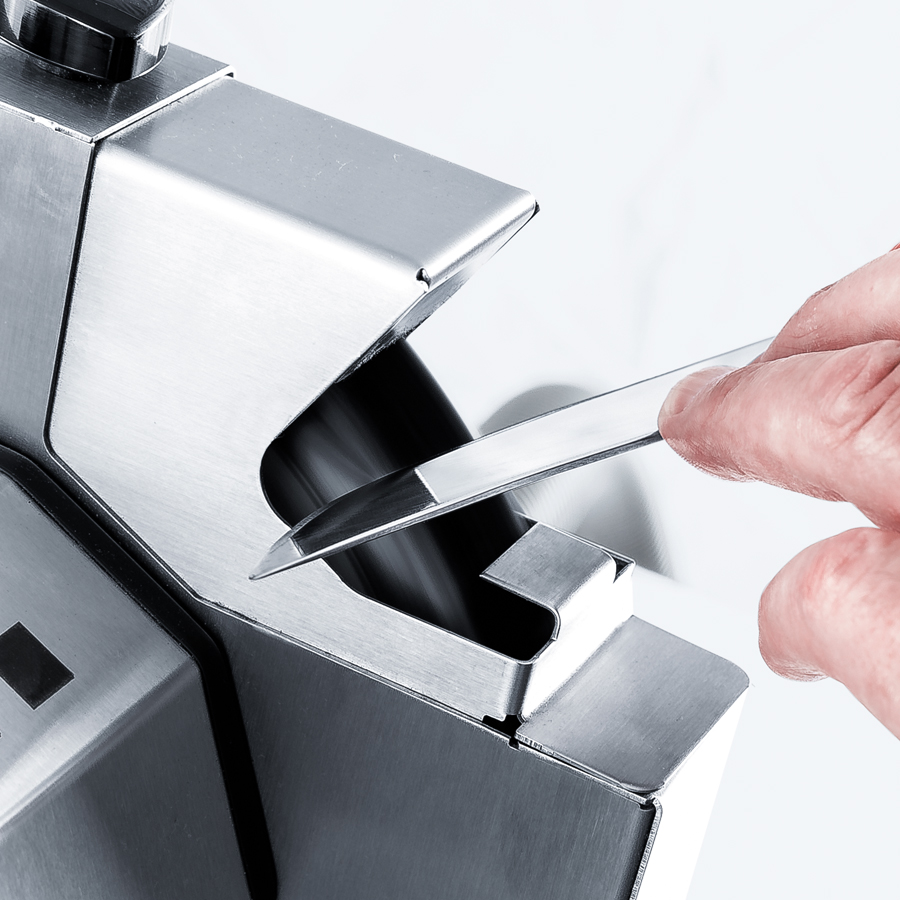

Polishing disk

Polishing disk

The polishing disk produces fine, polished surfaces and a burr-free, very smooth cutting edge. The precisely set peripheral speed and the optimally balanced polishing disk resistance compensate for handling errors.

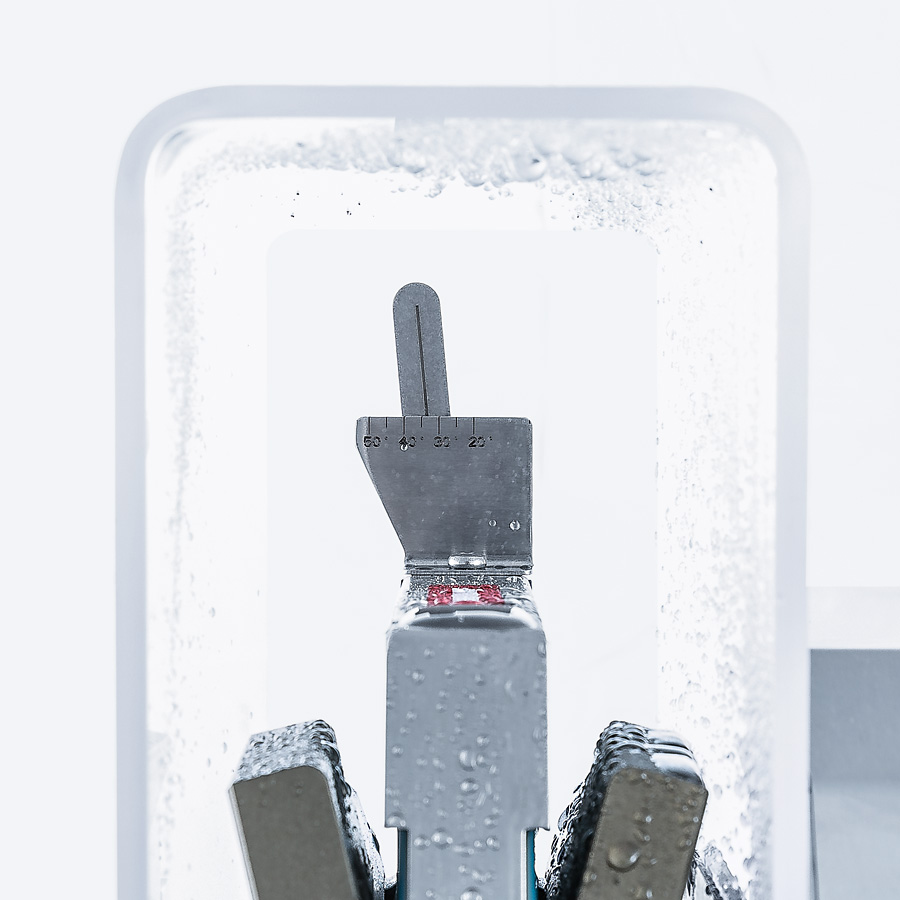

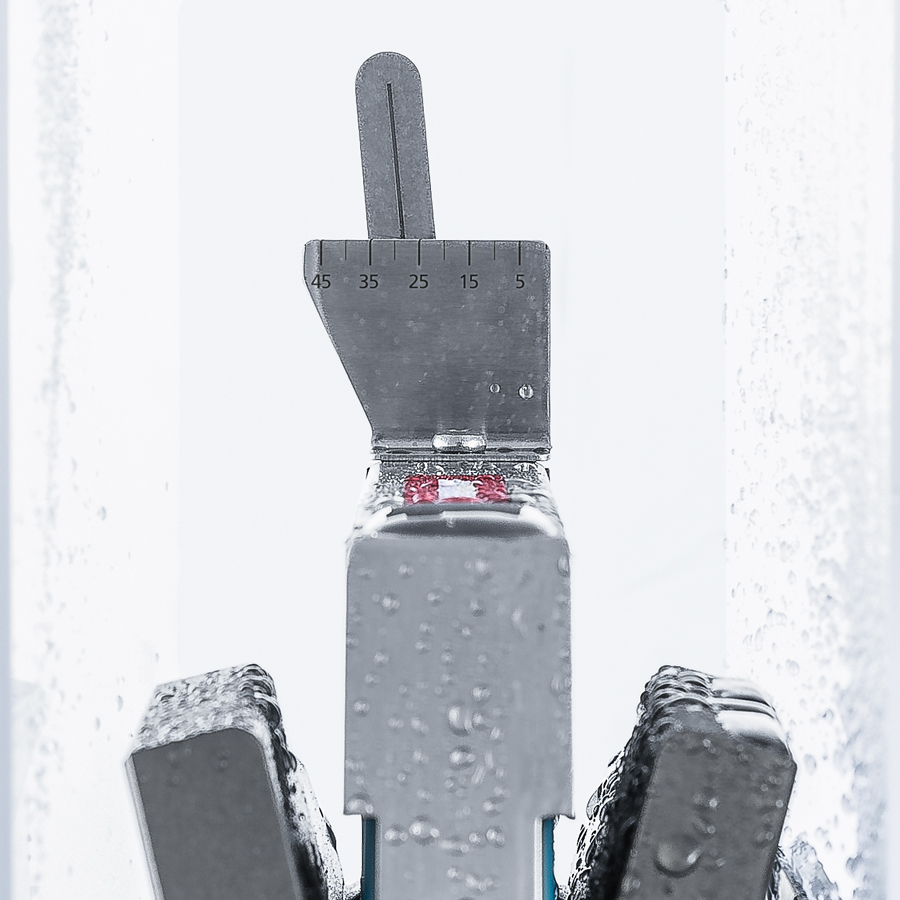

Variable angle adjustment

Variable angle adjustment

The grinding angle is infinitely adjustable from 15° to 45°. Thus, the optimum cutting edge angle is available for every application.

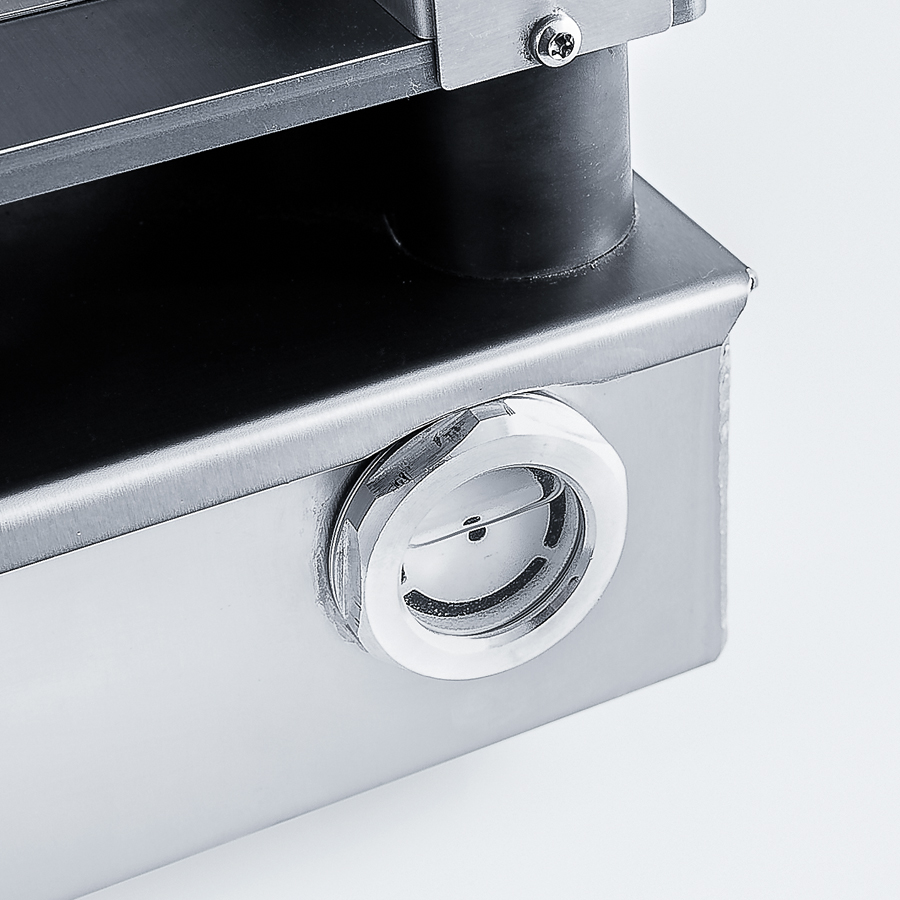

Coolant device

Coolant device

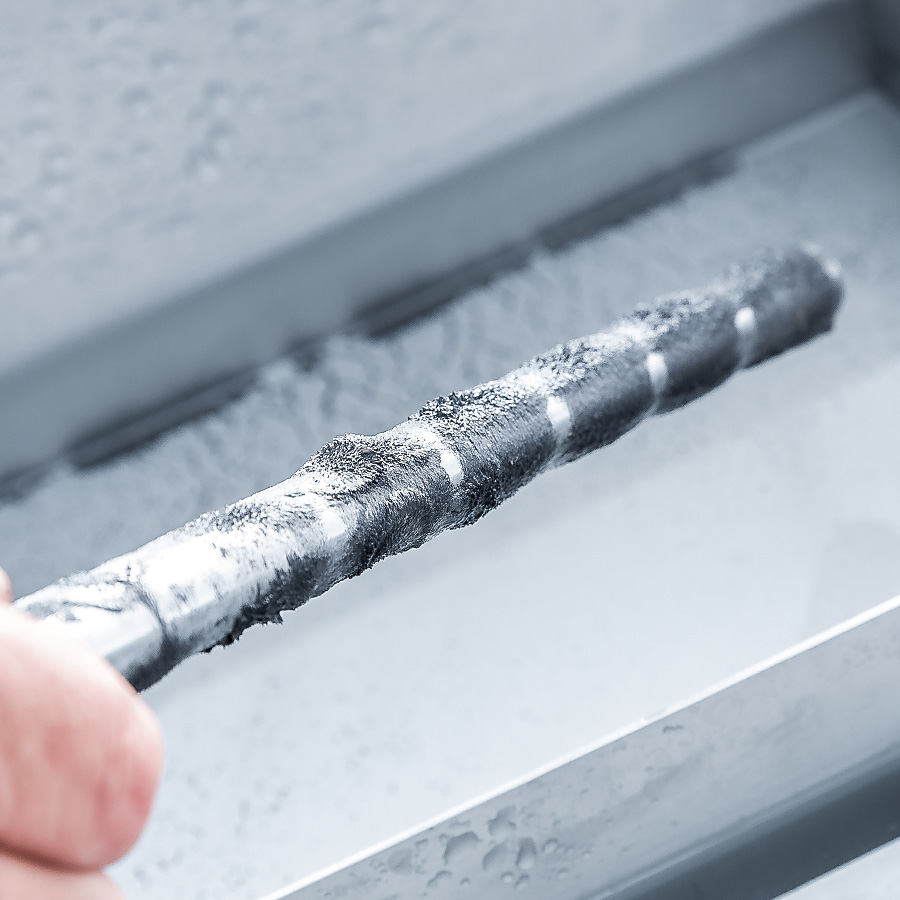

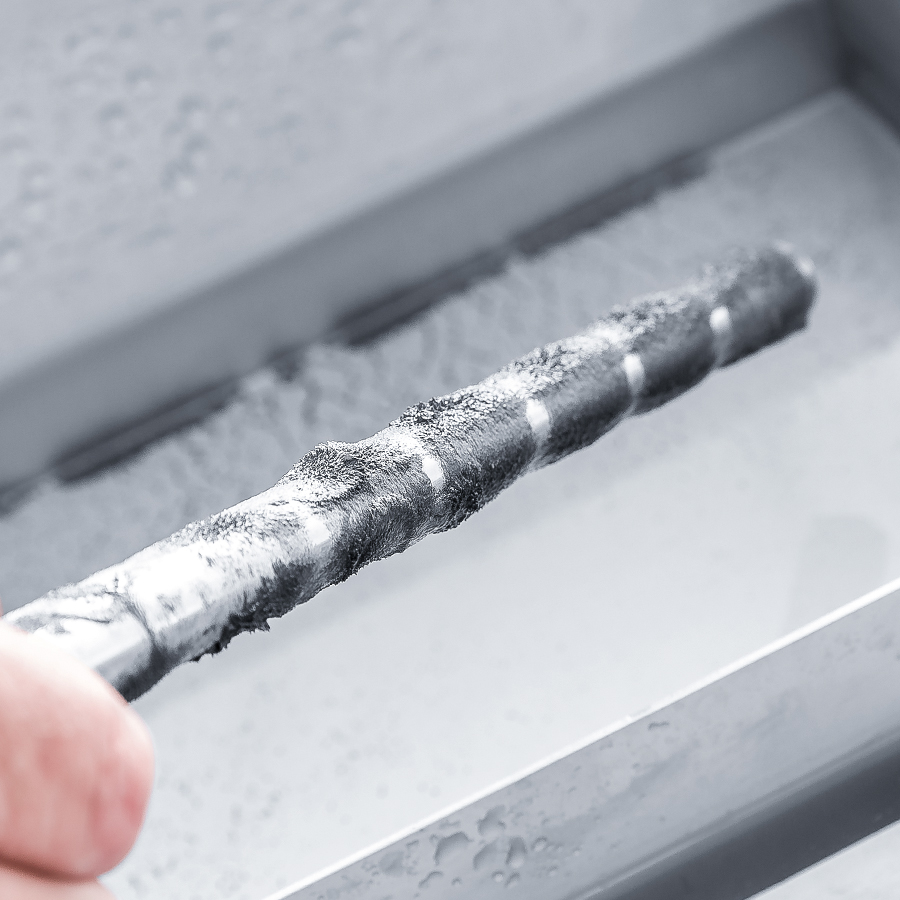

A dirt-resistant membrane pump conveys the cooling water to the grinding unit. The cutting edges cannot be overheated during grinding. The grinding abrasion collects in the water tray. A magnetic bar separates the dirty area from the clean area. This prevents the grinding abrasion from re-entering the coolant circuit.

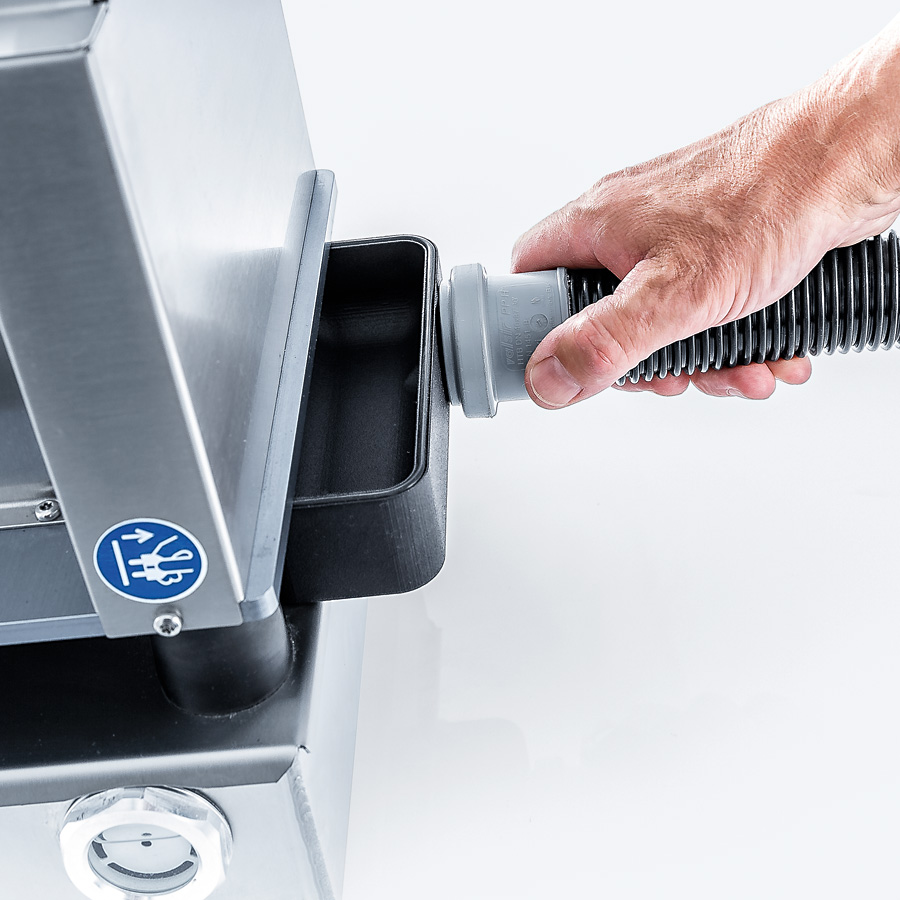

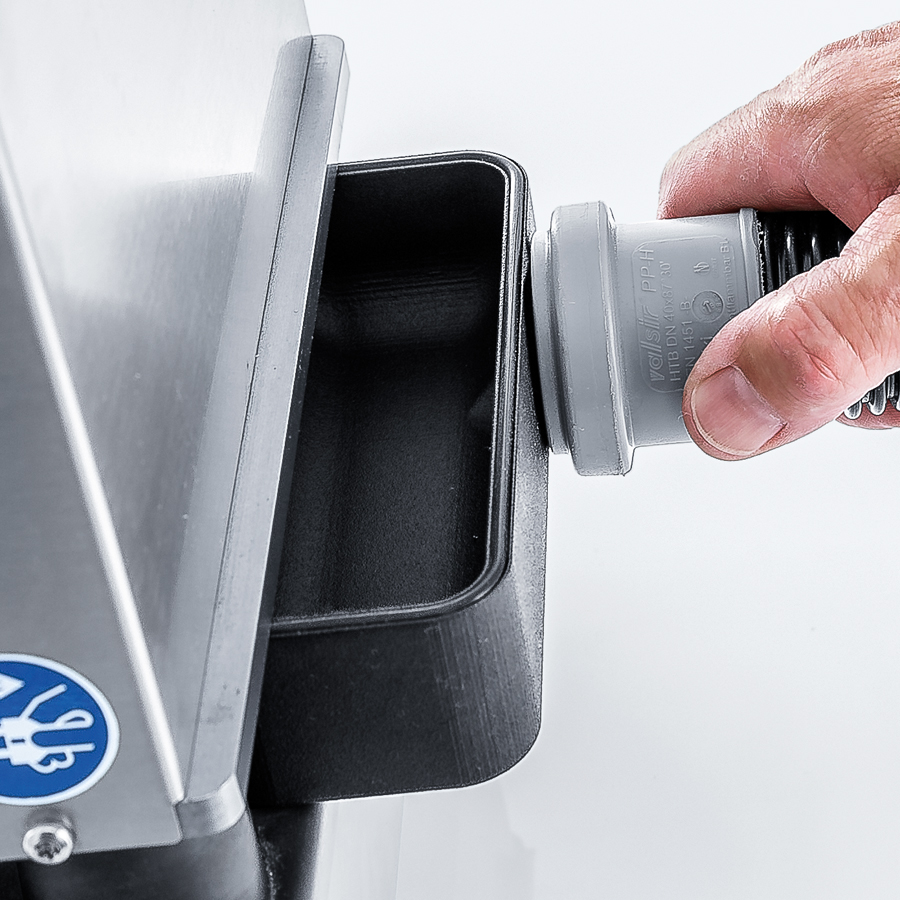

Dirt tray with suction socket

Dirt tray with suction socket

In addition to water cooling, the EVO 5 offers optional polishing dust extraction. A standard industrial vacuum cleaner can be connected to the machine‘s suction socket. The operator‘s breathing passages are thus protected as effectively as possible.

See what's going on

Know how to do it!



EVO 5 – Magnetic bar
EVO 5 – Setting grinding angle
EVO 5 – Sharpening hand knives
EVO 5 – Changing polishing disk
EVO 5 – Changing grinding wheels
EVO 5 – Cleaning
