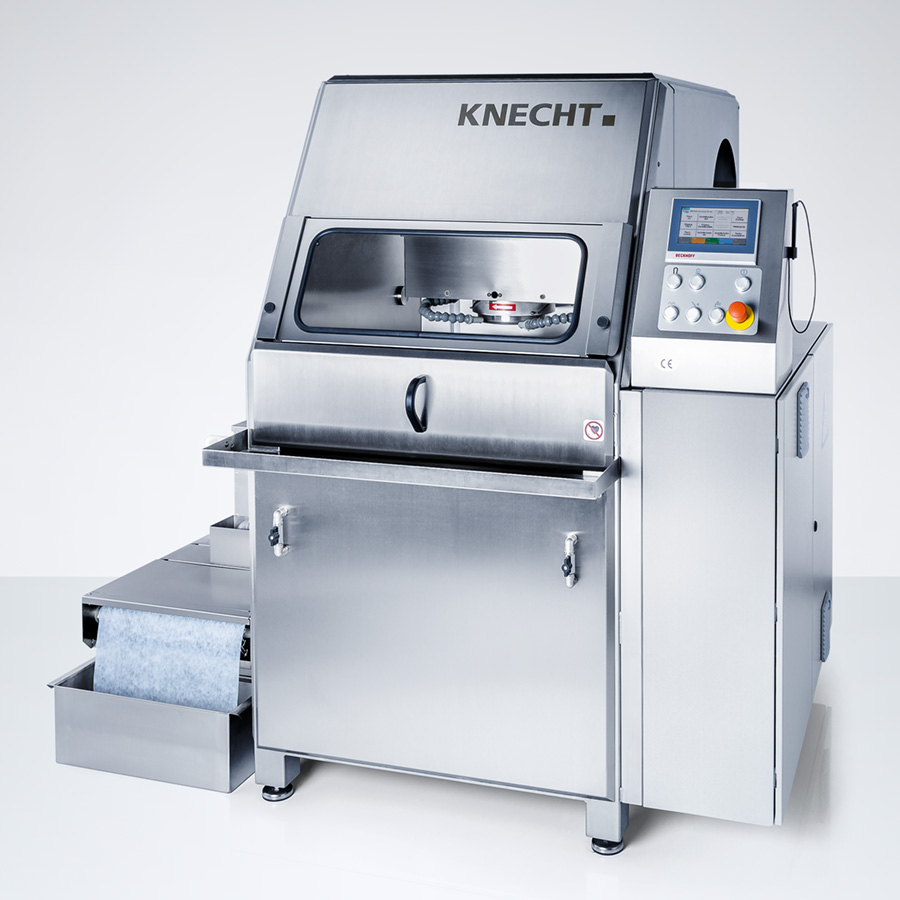

Fully Automatic Surface Grinding Machine W 40

The W 40 sharpens mincer plates and knives, cutting sets of inline grinders, as well as cutting sets of emulsifiers with a diameter up to 400 mm (15.7 in). Plane-parallelism is two hundredths of a millimeter.

The strong drive motor and the rotary table are installed in a heavy double-T-beam construction. This provides a high degree of material removal. Thus, even very worn workpieces can obtain an exact surface again in a short amount of time.

Highest chipping performance

Fully automated grinding

Maximum flatness

The coolant circuit of the W 40 ensures constant cooling of the workpieces. Overheating the workpieces is reliably prevented.

The automatic central lubrication system supplies all guide bars and spindles with lubricant. This makes the W 40  very maintenance-friendly.

The advantages at a glance

User-friendly control engineering

User-friendly control engineering

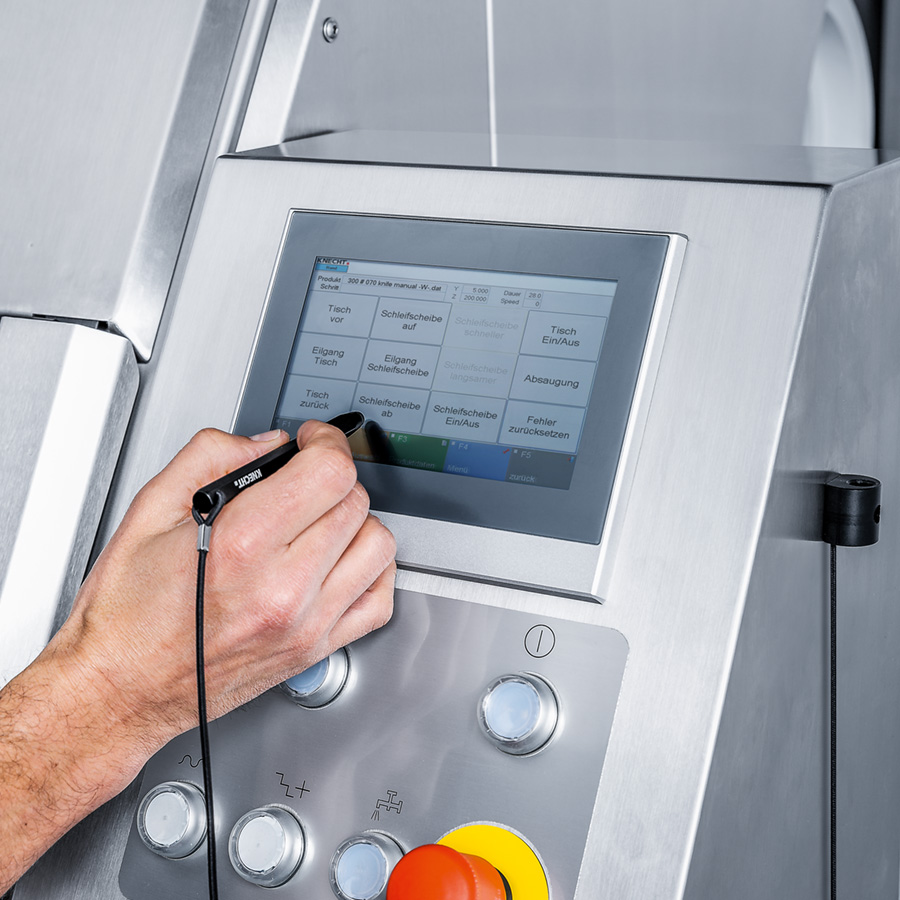

The W 40 is equipped with a user-friendly touchscreen control system.Three different grinding modes cover all sharpening requirements: Manual grinding, semi-automatic grinding, and fully automatic grinding. Any number of grinding programs can be very easily created by the machine operator. They can be named in plain text and are very easy to recall from the memory.
Perfect grinding results

Perfect grinding results

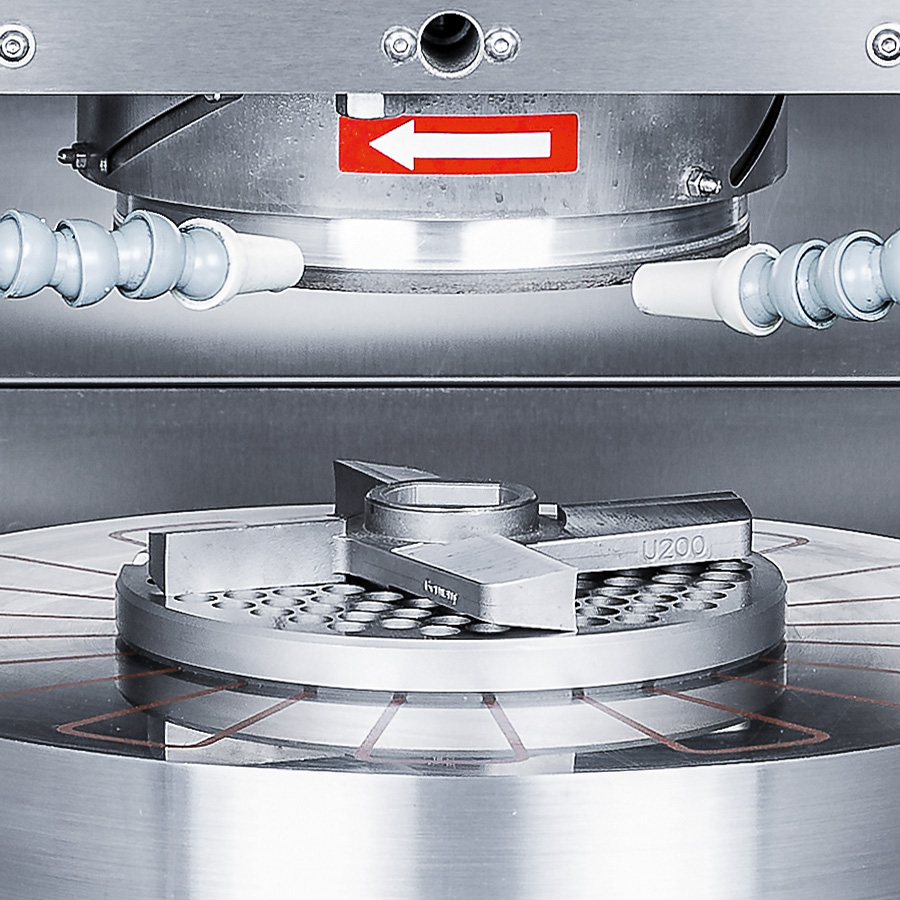

For optimum results with all workpiece diameters, the rotary table has two feed speeds. Moreover, two ­­different clamping options of the cutting tools are ­available: ­magnetic or centering pieces. When grinding with magnetic clamping, the heat is optimally dissipated via the rotary table. This ensures optimum cooling at a high material removal rate. The adhesive force can be regulated steplessly. When clamping via centering pieces, the clamping magnet is deactivated. This clamping type provides maximum precision for thin and sensitive ­workpieces.
Suction unit

Suction unit

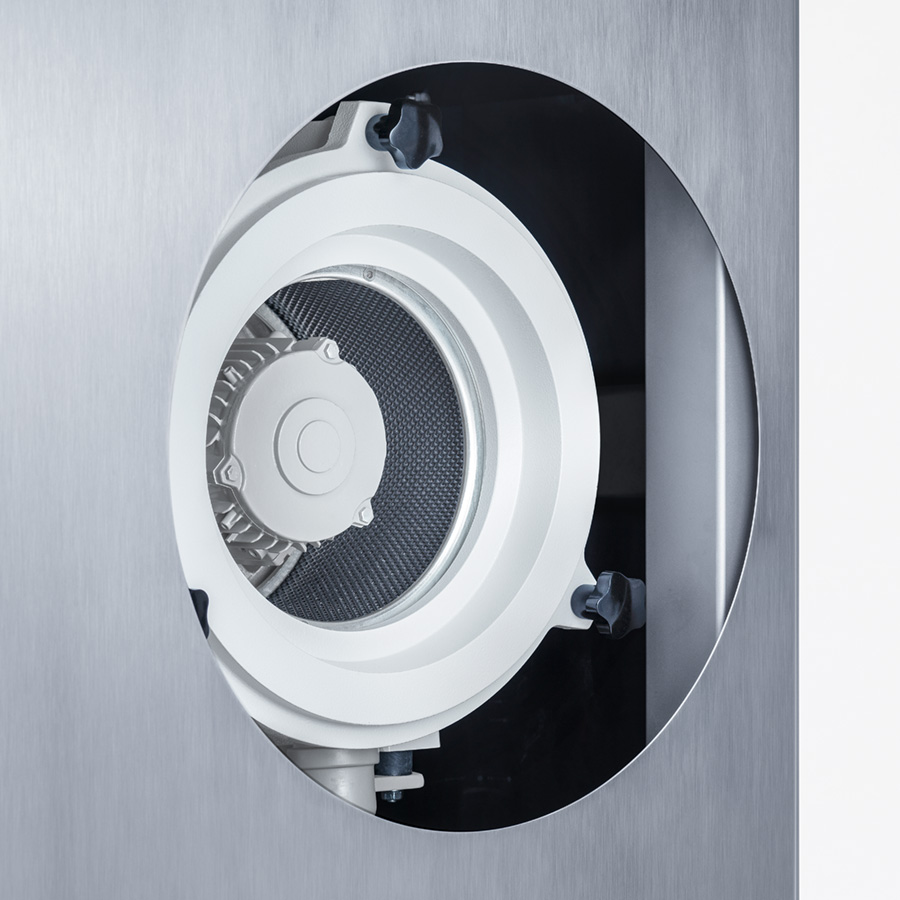

The W 40 is completely sealed. The power unit cannot be activated while the door is open. The integrated suction unit removes floating particles from the workroom. This enables visibility during the grinding process. Moreover, it protects the operator‘s respiratory system.
Belt filter coolant unit

Belt filter coolant unit

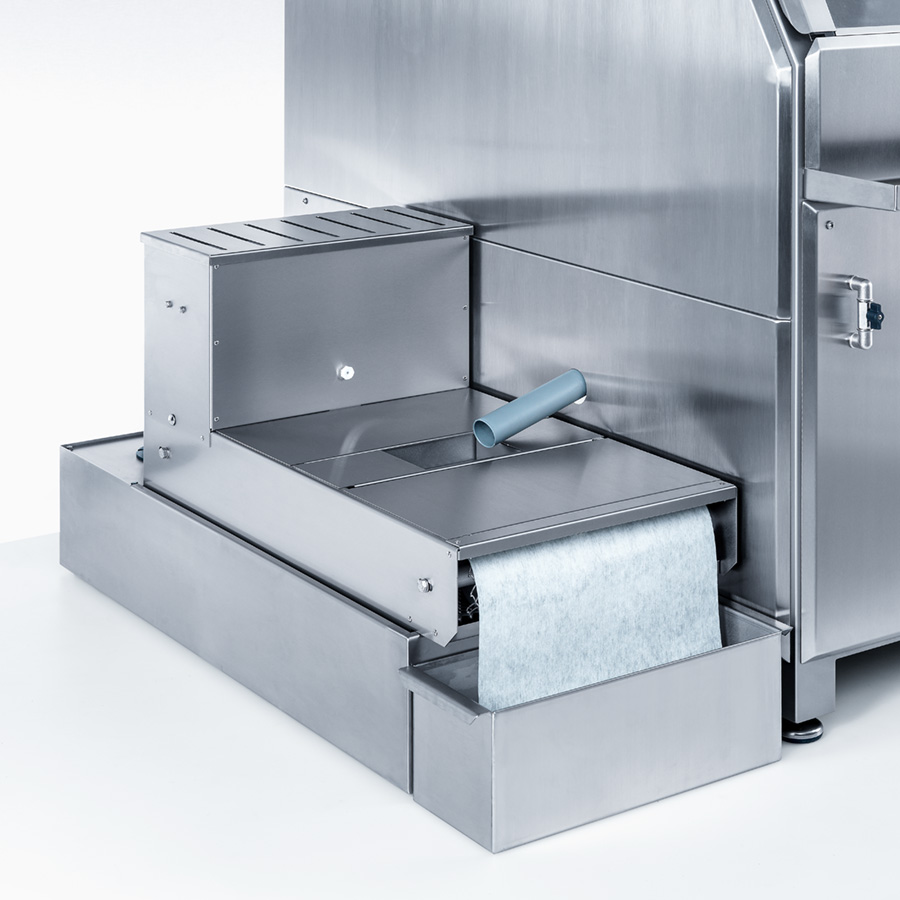

The belt filter coolant unit has a volume of 140 l. A filter fleece removes the grinding abrasion completely from the coolant circuit. The removed material is collected on the filter fleece and can be easily disposed of in an environmentally friendly way.

See what's going on

Know how to do it!


W 40 – Grinding mincing knives in automatic mode
W 40 – Grinding mincing knives in semi automatic mode
W 40 – Grinding a Continuous Cutter Set
W 40 – Clamping ring knives
W 40 – Two clamping options: with magnet or with centring piece
W 40 – Changing the grinding wheel
W 40 – Truing a corundum grinding wheel
W 40 – Belt filter coolant unit
W 40 – Copying and renaming a program
W 40 – Intervening in the grinding process
W 40 – Manually accelerate the feed
W 40 – Selecting a program
W 40 – Adjusting the speed

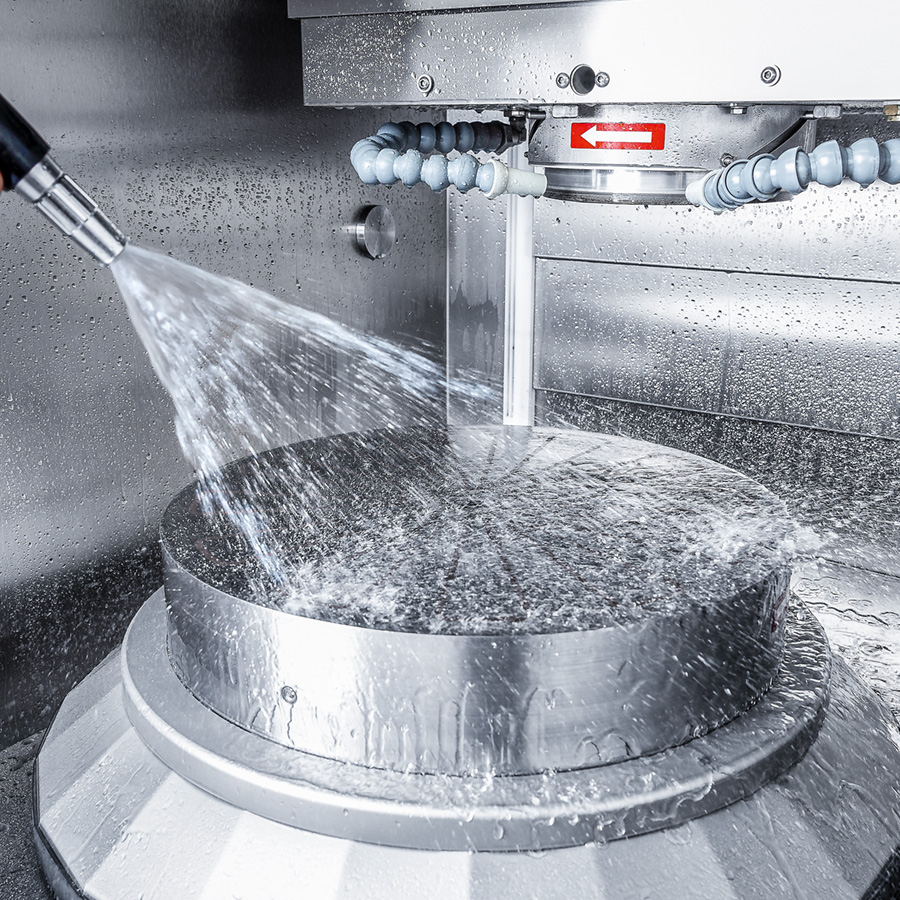

W 40 – Cleaning the Surface Grinding Machine
