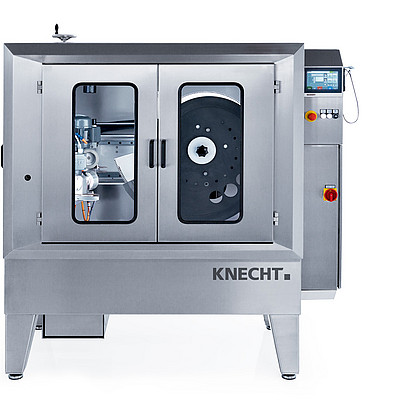

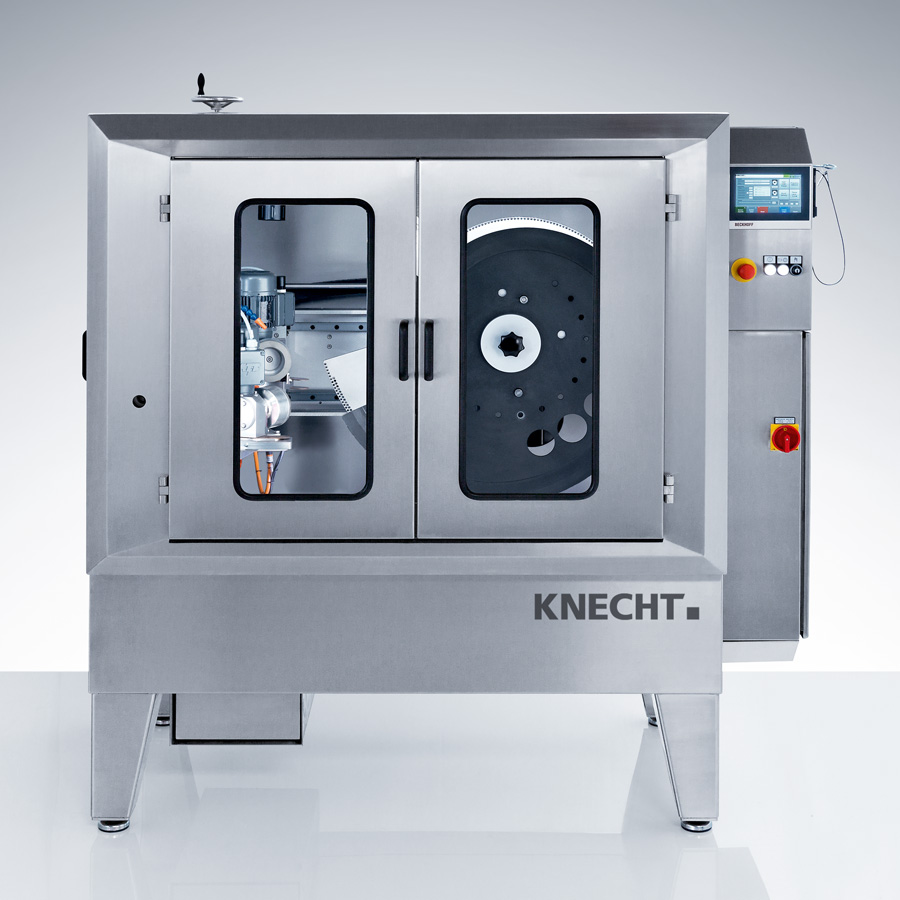

The A 950 III grinds sickle-shaped knives of all brands up to 900 mm (35,4 in) and circular knives up to diameter 700 mm (27,5 in). The machine is simple and easy to operate via touch panel. It provides highest grinding precision.
Grinding Machine for Sickle-shaped and Circular Knives A 950 III
Lowest material removal
Exactly placed products
Precise cutting edges
The grinding angle is set between -5° and 35° and is infinitely variable. The setting is fast and simple: release clamping lever – move grinding unit to the required angle position – lock clamping lever.
A coolant unit with a capacity of 20 l efficiently prevents the cutting tools from overheating during the grinding process.
The advantages at a glance

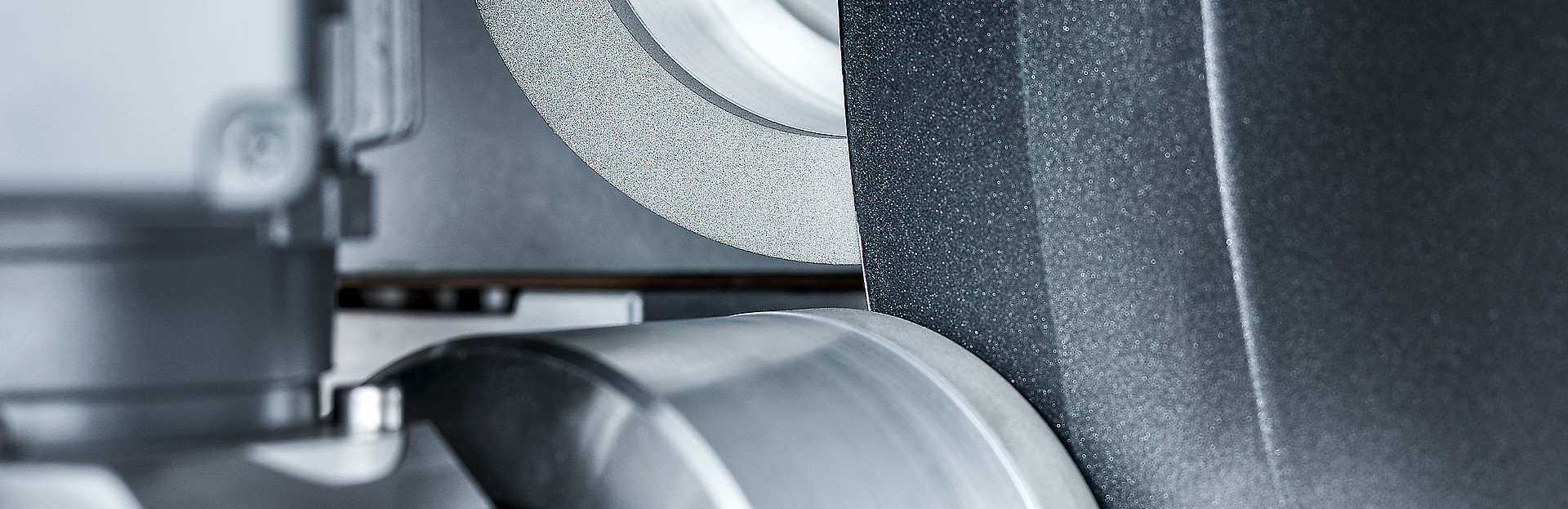

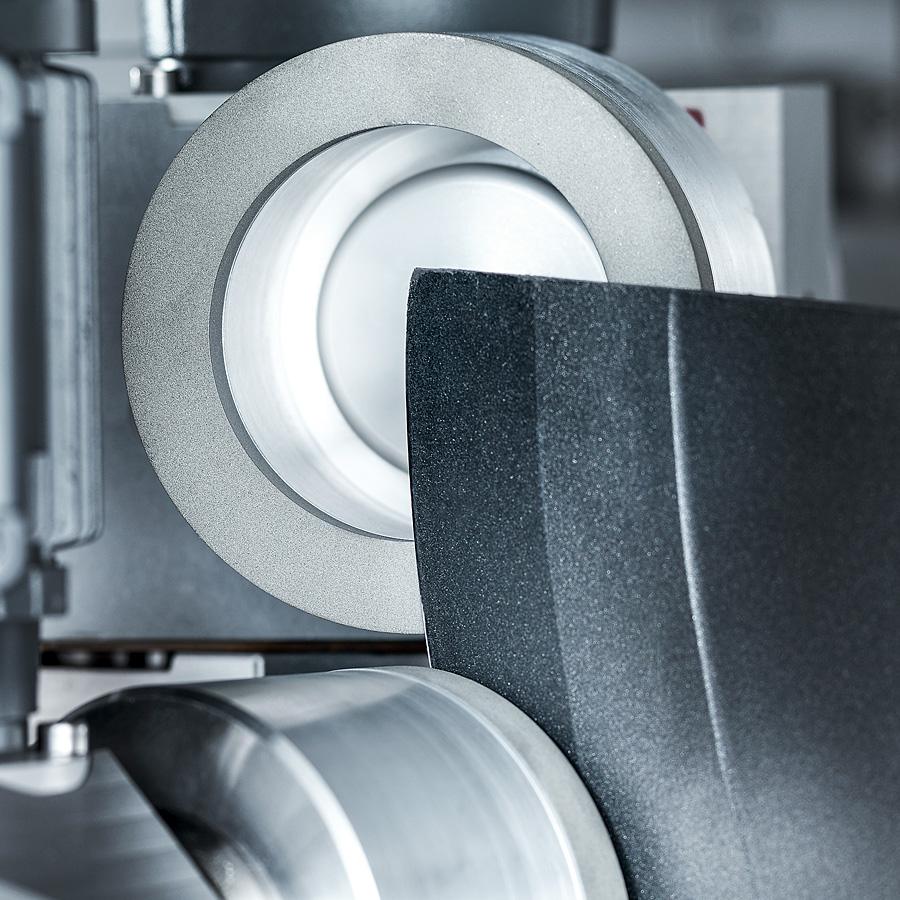

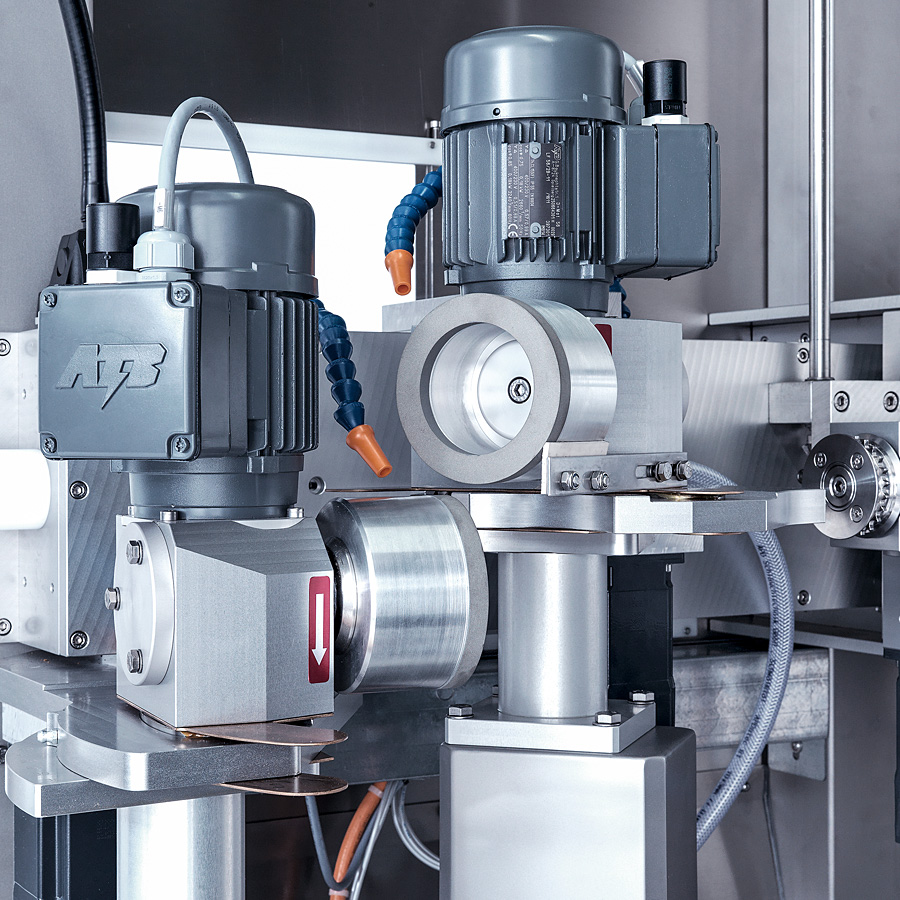

Grinding and deburringThe A 950 III operates with powered grinding tools. As a result, the slicer knives are ground with precisely defined edges. The grinding pressure is applied pneumatically. It can be exactly regulated. The material removal on the knife is minimal.
DriveThe slicer knives are driven by a servo drive on the outer contour. That means that the A 950 III has the same feed rate at every point of the cutting edge. The blade retains the exact same shape over its entire service life. The servo drive ensures perfect cutting edges.

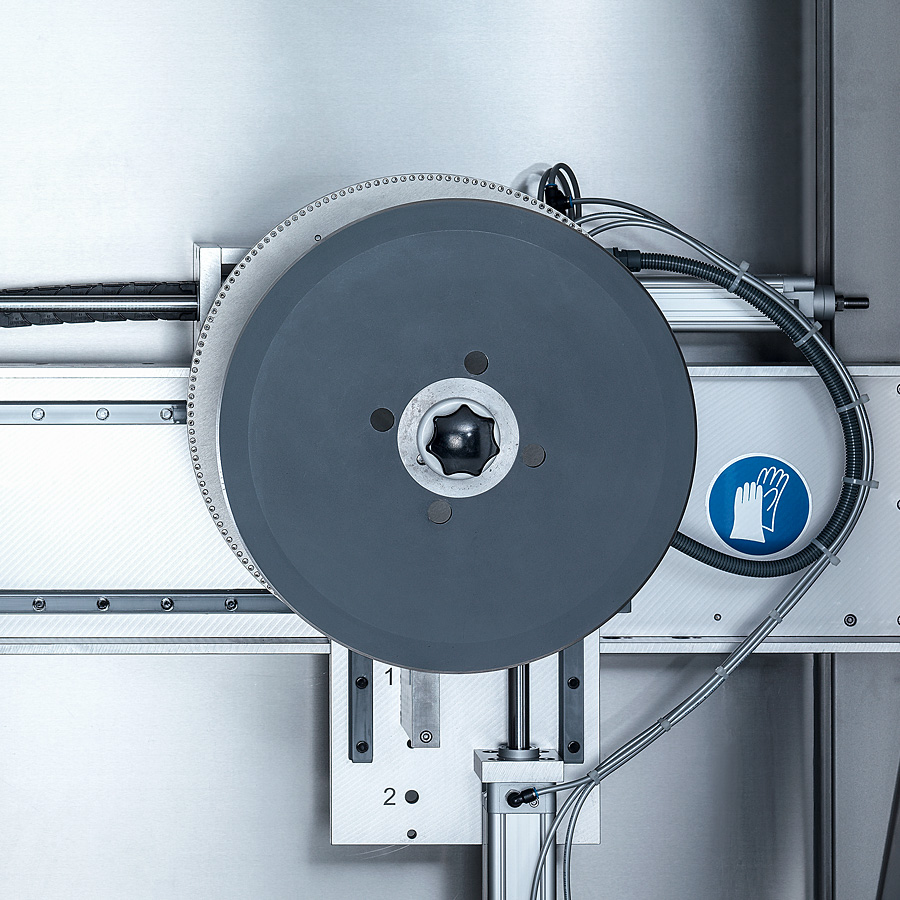

Circular knives up to 700 mm (27.5 in)The A 950 III grinds circular knives of all brands from diameters of 300 - 700 mm (11.8 - 27.5 in) with single and double beveled edges. The same also applies here: Precise edges, perfect cutting angles.

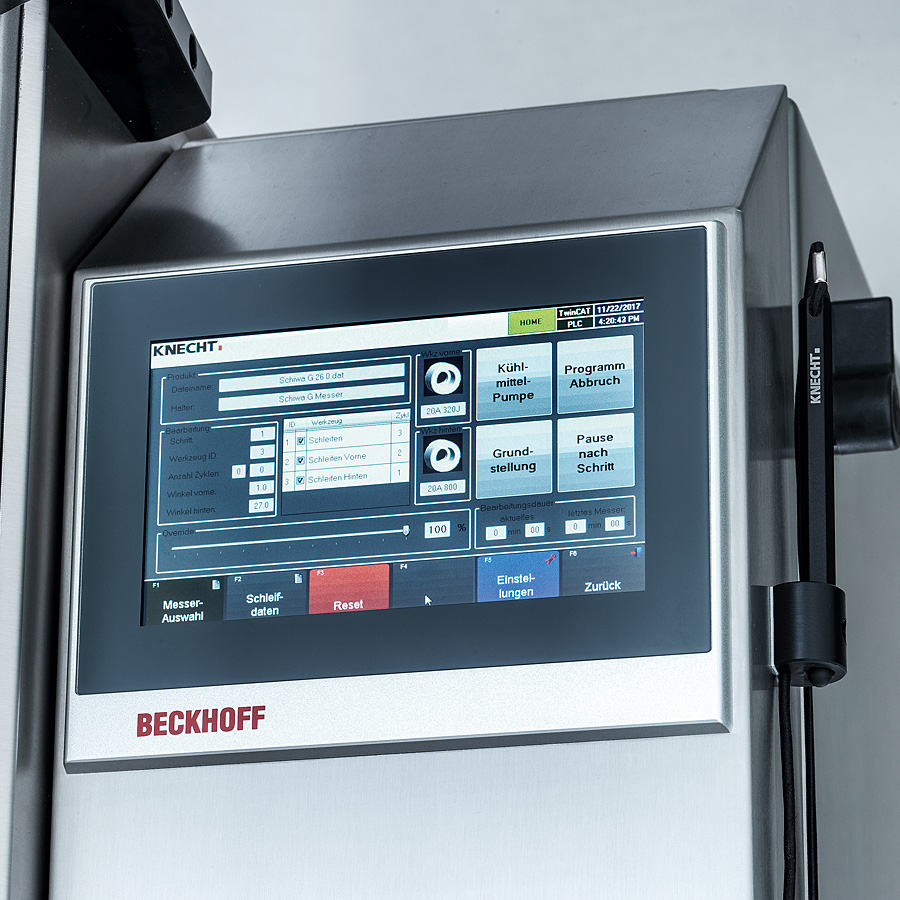

OperationThe A 950 III is easy to operate via touch panel. For each slicer knife an individual grinding program, consisting of number of grinding cycles, the chosen cutting angle and the required abrasives is created and saved. When the program is called, the required cutting angle and the necessary abrasives are shown on the display. The machine sets automatically the number of saved grinding cycles. The number of grinding programs is unlimited.
See what's going on
Know how to do it!
A 950 III – Position the knife to the grinding wheel
A 950 III – Changing the grinding wheels
A 950 III – Key-operated switch for manual mode
